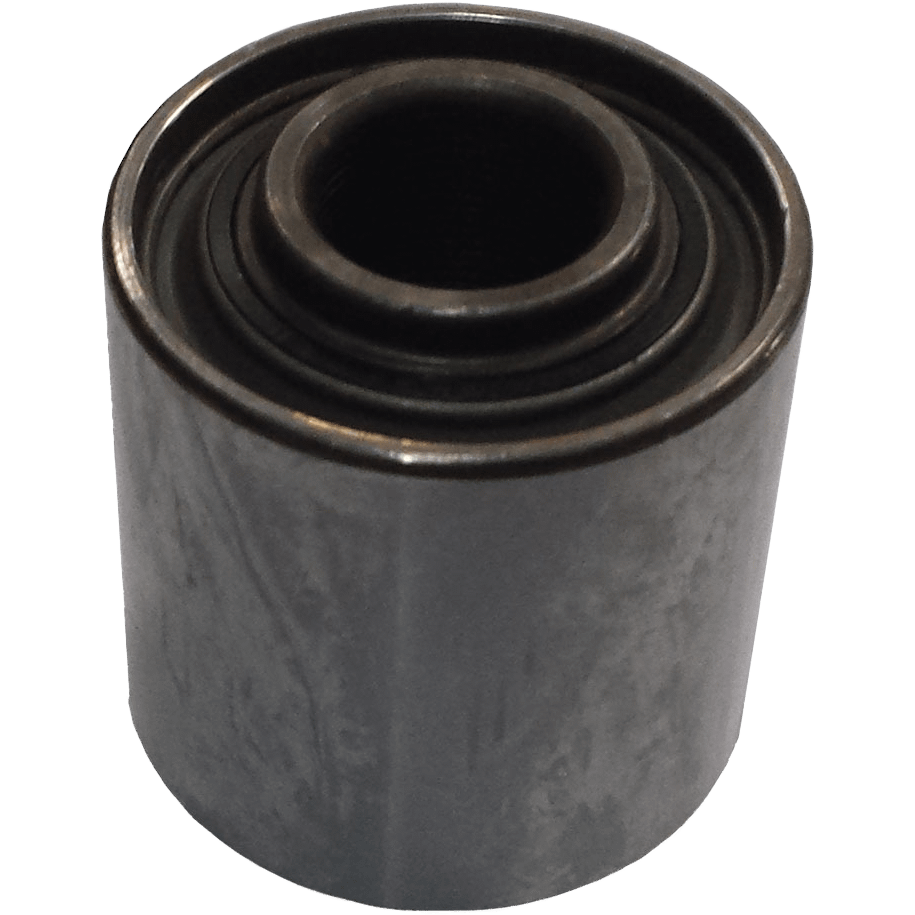

Sealed Double Row Ball Bearing (16.26mm x 40mm x 43.94mm) - 3 Lip
Dimensions:
- OD: 40mm
- ID: 16.26mm
- Thickness: 43.94mm
Replaces:
- John Deere OEM AN212132
- Kinze OEM GA6171, CNH 324461A1 306007A1
- Case-IH OEM 47577193, 324461A1, 306007A1
- Great Plains OEM 822-170C
- Monosem 900125, 7140A
- White OEM 854003
- Yetter 2570-069
- Flexicoil Barton 8707
John Deere
- Rubbber closing wheel on MaxEmerge®Plus, Pro-Series, MaxEmergeXP, Pro-SeriesXP, 1530, 1535 drills
- Gauge wheel on MaxEmergeXP, Pro-SeriesXP, 1530, 1535 with MaxEmergeXP planters
- Gauge wheel on 750, 1560, 1590, 1690, 1835, 1850, 1860, 1890, 1895, 1990 drills and air seeders
- Gauge wheel on 856 row crop cultivator
- Gauge wheel and cast sealing wheel on 2510H applicator
- Cast iron wheel on late MaxEmergeXP, Pro-SeriesXP, MaxEmerge5, ExactEmerge, 1530, 1535 drills
- Cast closing wheel arm on drills and air seeders 1560, 1590, 1690, 1835, 1860, 1890, 1895, 1990
- 4-bolt notched marker blades on 1700 and DB series planters, 7200, 7240, 7300, 7340 built 1995 after, drills 750, 1520, 1530, 1535, 1560, 1590
Kinze®
- Gauge wheel and closing wheel on planters 1993 newer
- Gauge wheel on 1500 ridge till cultivator
Case-IH
- Single disc fertilizer gauge wheel on 1200 series planters
- Gauge wheel on 1200 series s/n CBJ0001611 up, SDX30, SDX40 air seeders, 30, 40, 500,500T Precision Disc Drills
- Packing wheel on SDX30, SDX40, 30, 40 Precision Disc
- Press wheel on 500, 500T Precision Disc drills
Great Plains
- 2″ x 13″, 3″ x 13″ drill press wheels 1997 and after with nylon wheel halves
- 2 1/2″ x 16″, 3″ x 16″, 4 1/2″ x 16″ drill gauge wheels 1998 and after (1 used)
- 2 1/2″ x 16″, 3″ x 16″, 4 1/2″ x 16″ planter gauge wheels
- Planter press wheels (all sizes with 40mm OD bearing), cast iron and spider closing wheels
Hiniker 4800 air seeders late model gauge wheels mounted with 5/8″ bolt
Krause
- Gauge wheel on 4600 row crop cultivators.
- Gauge and press wheel on drills.
Landoll drill gauge and press wheels
Martin Spading-Closing Wheels on John Deere 7000-7100, late 1700 with MaxEmerge®Plus, MaxEmergeXP, Kinze®, White 6000, 8000
Monosem Plus late model planter gauge wheel and closing wheel
Morris drill gauge and press wheels
New Holland gauge wheel and press wheel on P2080, P2085 Disc Drills
Sukup drill gauge and press wheels
White
- Gauge wheel on 8000, 9000 series planters
- Rubber or cast dual closing wheels on late 6000, 8000, 9000 series planters
Yetter paddle closing wheel
Similar to 5203KPP2-R-A120 and 5203KYY2 or DAC1640442RSL
Part of Steel Wheel Kit (90mm x 355mm), see 410-015 KS
Part of SX Cleaning Wheel Assembly, see 410-034
Part of SX Press Wheel Hub Assembly, see 410-041
Part of SX25 Trash Whipper Assembly - LH, see 410-061 LH
Part of SX25 Trash Whipper Assembly - RH, see 410-061 RH
Part of SX Cleaning Wheel Hub Assembly, see 410-120 KS
Part of DX Narrow Gauge Wheel Assembly (2 1/2" x 15"), see 412-016
Part of DX Press Wheel Body Assembly, see 412-022
Part of DX Trash Whipper Assembly, see 412-045
Part of DX Floating Trash Whipper Assembly with Clean Sweep, see 412-048 W CLEAN SWEEP
Part of DX Floating Trash Whipper Assembly with Floating Link, see 412-048 W FLOATING LINK
Part of DX Trash Whipper Assembled Star Kit, see 412-236 KS
Part of Treader Wheel Assembly Kit, see 412-288 KS
Part of Trailing Press Wheel Hub Assembly, see 414-230
Part of John Deere Single Disc Cleaning Wheel Assembly, see 436-960
Part of John Deere Floating Trash Whipper with Clean Sweep Kit, see 437-173 W CLEAN SWEEP
Part of John Deere Floating Trash Whipper with Floating Link Kit, see 437-173 W FLOATING LINK
