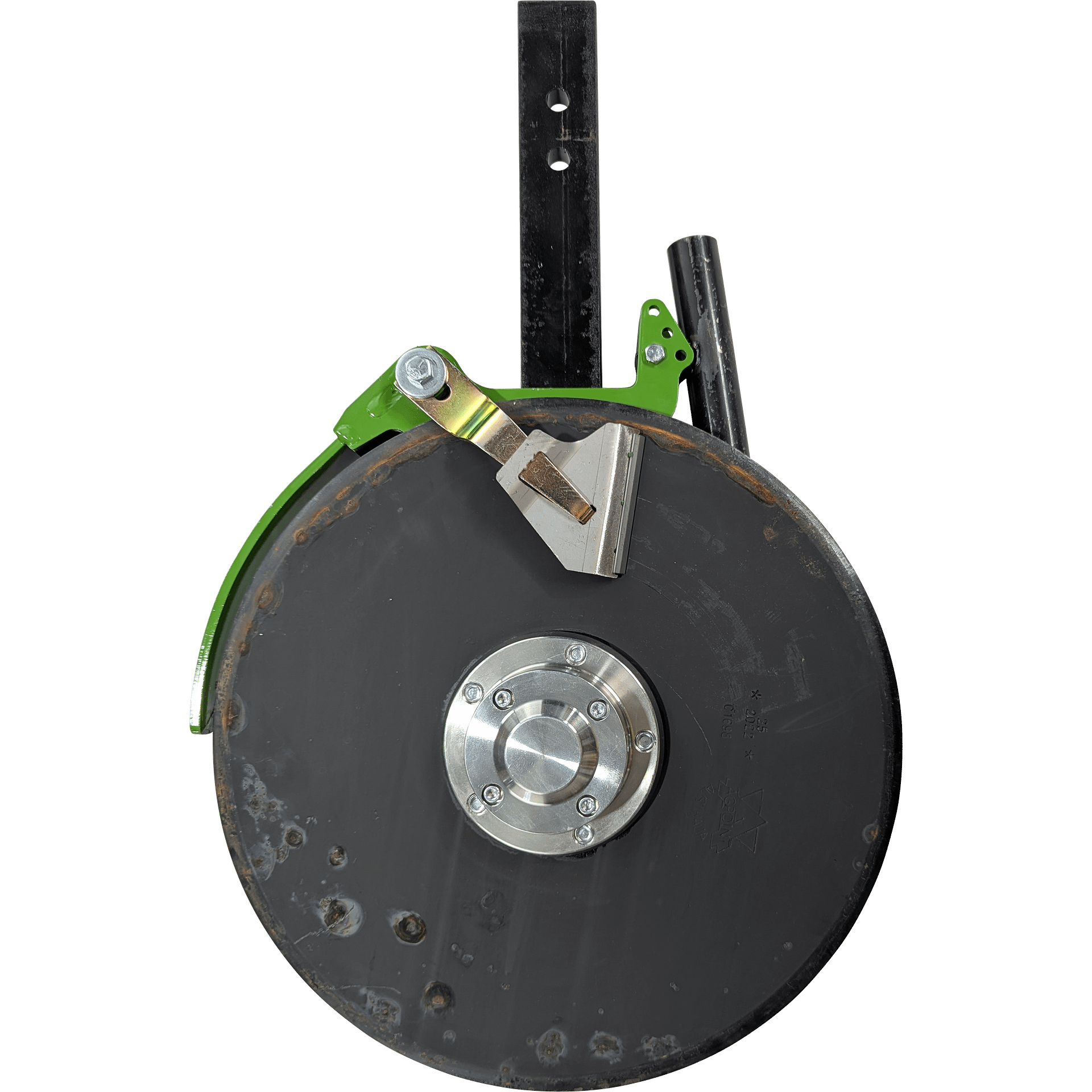

Tyne Disc Opener Assembly (50mm x 16mm)
Specifications:
- Consists of twin 16″ single bevel discs
- Sealed angular contact bearings
- 50mm x 16mm shank size: 1/2″ pin diameters with 37.5mm pin spacings
- Discs operates at opposing 4 degrees for a narrow seed trench – reduces down force requirements and creates a smaller V to close
- 32mm OD drop tube made from steel for tough broadacre applications
For the 25mm version, see 413-013
| Included Parts | |||||
|---|---|---|---|---|---|
| Image | Amount | Description | Part Number | Price | Options |
 |

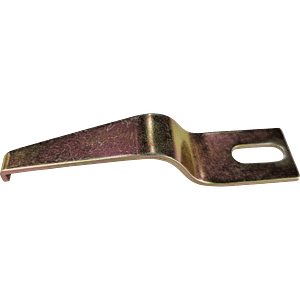

2 | Mud Scraper Arm Single Bolt BOSS) | 410-241 | $19.00 excluding GST | $19.00 excluding GSTAdd to cart |
| View Product | |||||
 |
2 | DX Disc and Hub Assembly Kit (Sealed Bearings) | 412-061 KS | $298.00 excluding GST | $298.00 excluding GSTAdd to cart |
| View Product | |||||
 |

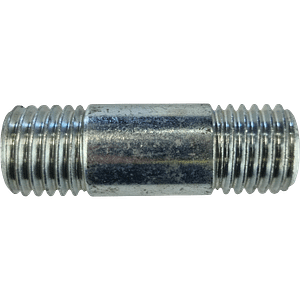

1 | DX Disc Axle Stud - LH | 412-160 LH | $13.00 excluding GST | $13.00 excluding GSTAdd to cart |
| View Product | |||||
 |

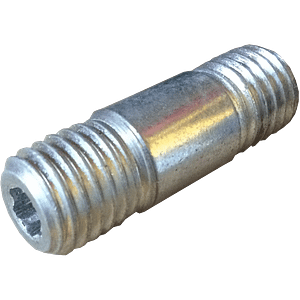

1 | DX Disc Axle Stud - RH | 412-160 RH | $13.00 excluding GST | $13.00 excluding GSTAdd to cart |
| View Product | |||||
 |

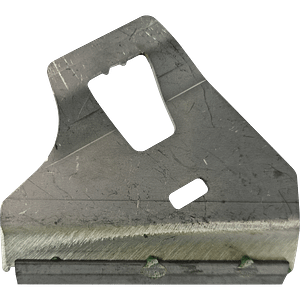

1 | DX Mud Scraper Blade - LH | 412-165 LH | $55.00 excluding GST | $55.00 excluding GSTAdd to cart |
| View Product | |||||
 |

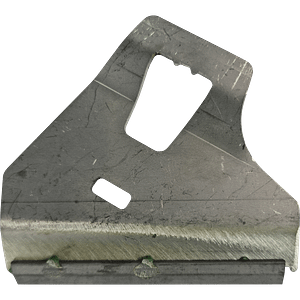

1 | DX Mud Scraper Blade - RH | 412-165 RH | $55.00 excluding GST | $55.00 excluding GSTAdd to cart |
| View Product | |||||
 |

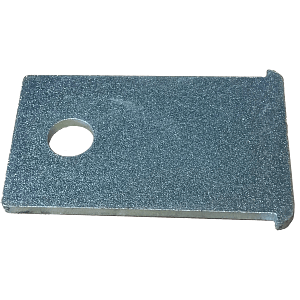

1 | Tyne Disc Opener Disc Guard Packer (4mm) | 413-254 | $7.70 excluding GST | $7.70 excluding GSTAdd to cart |
| View Product | |||||
 |
1 | Tyne Disc Opener Disc Guard Packer (5mm) | 413-255 | $7.70 excluding GST | $7.70 excluding GSTAdd to cart |
| View Product | |||||
 |

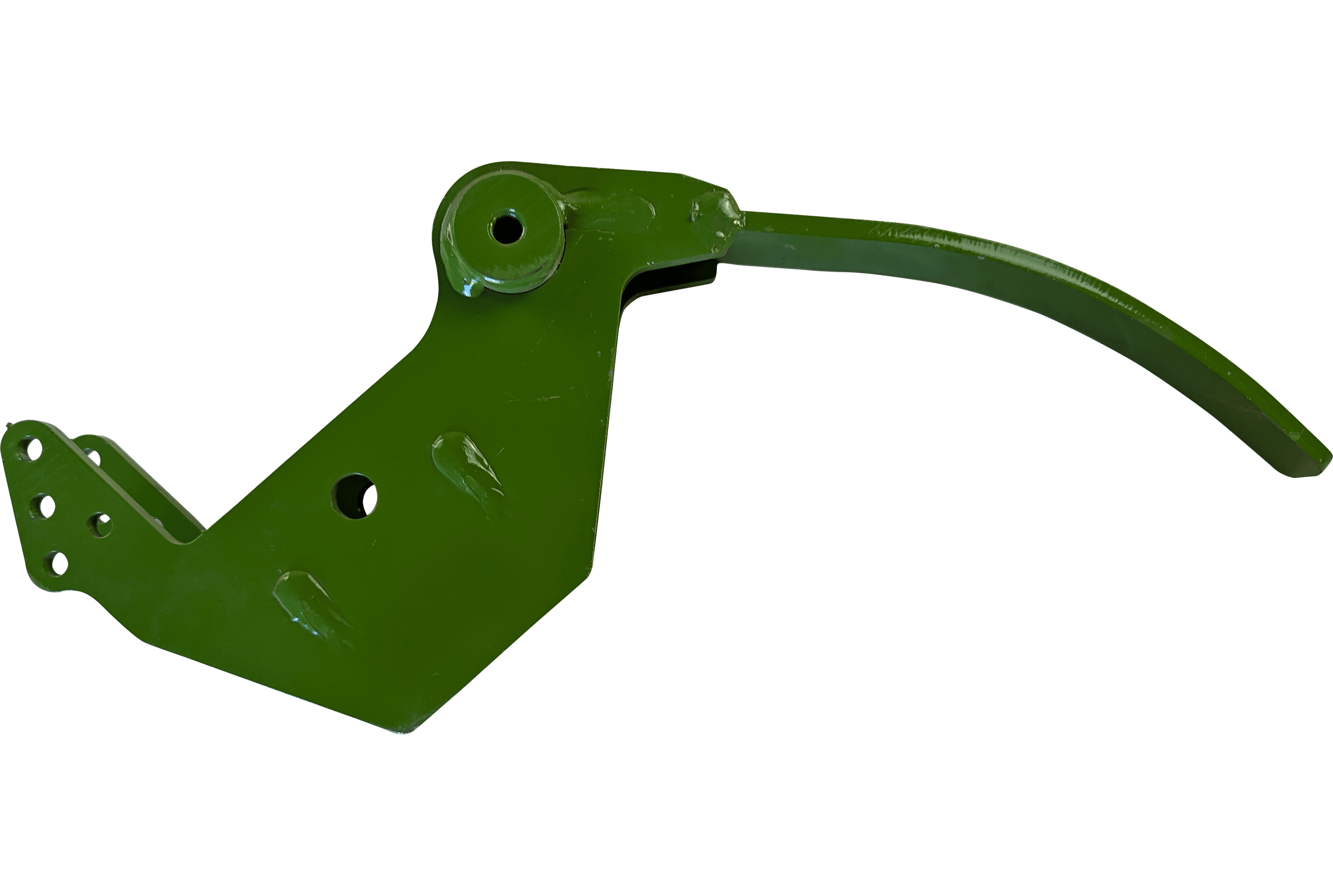

1 | Tyne Disc Opener Disc Guard | 413-256 | $153.00 excluding GST | $153.00 excluding GSTAdd to cart |
| View Product | |||||
 |

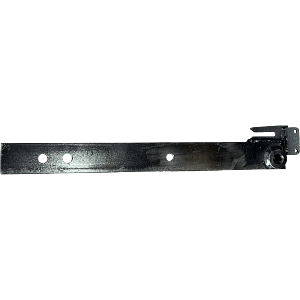

1 | Tyne Disc Opener Body (50mm x 16mm) | 413-259 | $360.00 excluding GST | $360.00 excluding GSTAdd to cart |
| View Product | |||||
 |

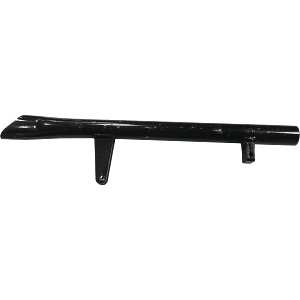

1 | Tyne Disc Opener Drop Tube B | 413-267 | $89.00 excluding GST | $89.00 excluding GSTAdd to cart |
| View Product | |||||
 |

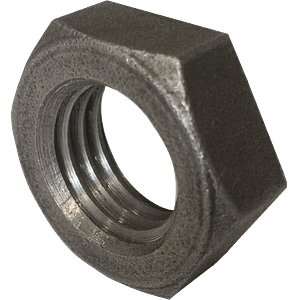

1 | UNC Nut Hex Lock (3/4") - Grade M/S - RH | 900-095 | $6.40 excluding GST | $6.40 excluding GSTAdd to cart |
| View Product | |||||
 |

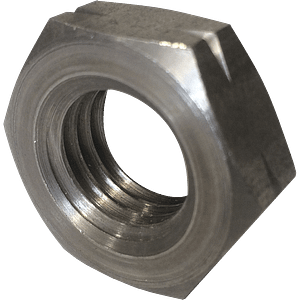

1 | UNC Nut Hex Lock (3/4") - Grade M/S - LH | 900-114 | $6.40 excluding GST | $6.40 excluding GSTAdd to cart |
| View Product | |||||
 |
1 | UNC Nyloc Nut (1/4") - Grade 5 | 900-303 | $0.20 excluding GST | $0.20 excluding GSTAdd to cart |
| View Product | |||||
 |

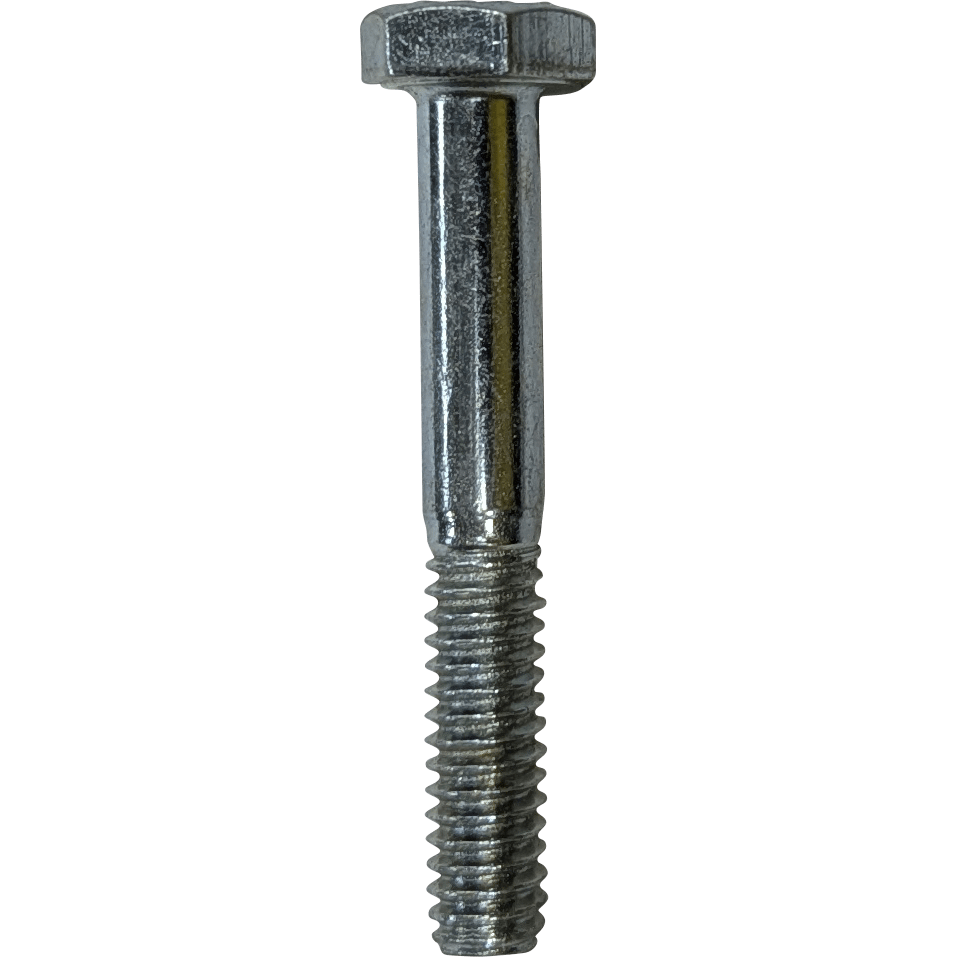

1 | UNC Hex Head Bolt (1/4" x 1 3/4") - Grade 5 | 902-011 | $0.40 excluding GST | $0.40 excluding GSTAdd to cart |
| View Product | |||||
 |
2 | UNC Hex Head Bolt (3/8" x 1") - Grade 5 | 902-106 | $0.50 excluding GST | $0.50 excluding GSTAdd to cart |
| View Product | |||||
 |

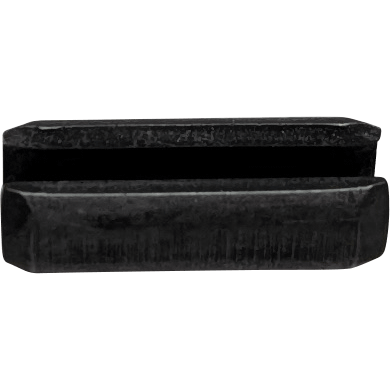

2 | Spring/Roll Pin (6mm x 16mm) | 909-082 | $1.00 excluding GST | $1.00 excluding GSTAdd to cart |
| View Product | |||||
 |

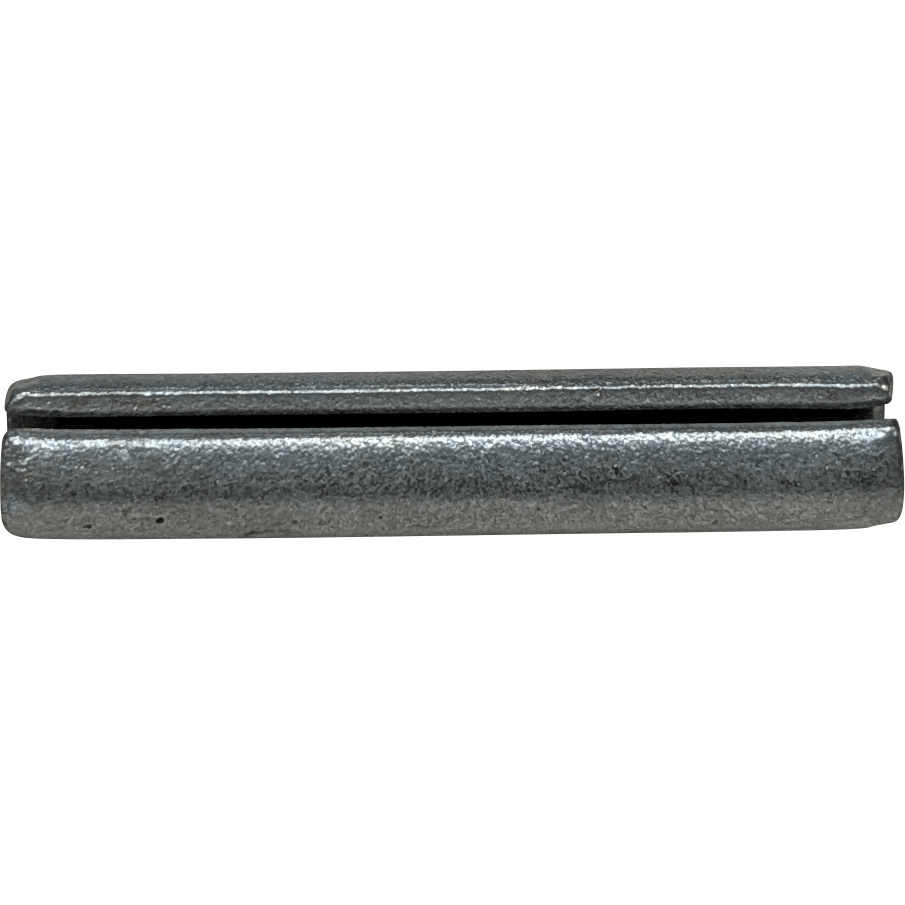

1 | Spring Roll Pin (5/16" x 1 3/4") | 909-322 | $2.00 excluding GST | $2.00 excluding GSTAdd to cart |
| View Product | |||||
 |
1 | Spring/Roll Pin (1/2" x 1 3/4") | 909-363 | $6.40 excluding GST | $6.40 excluding GSTAdd to cart |
| View Product | |||||
 |

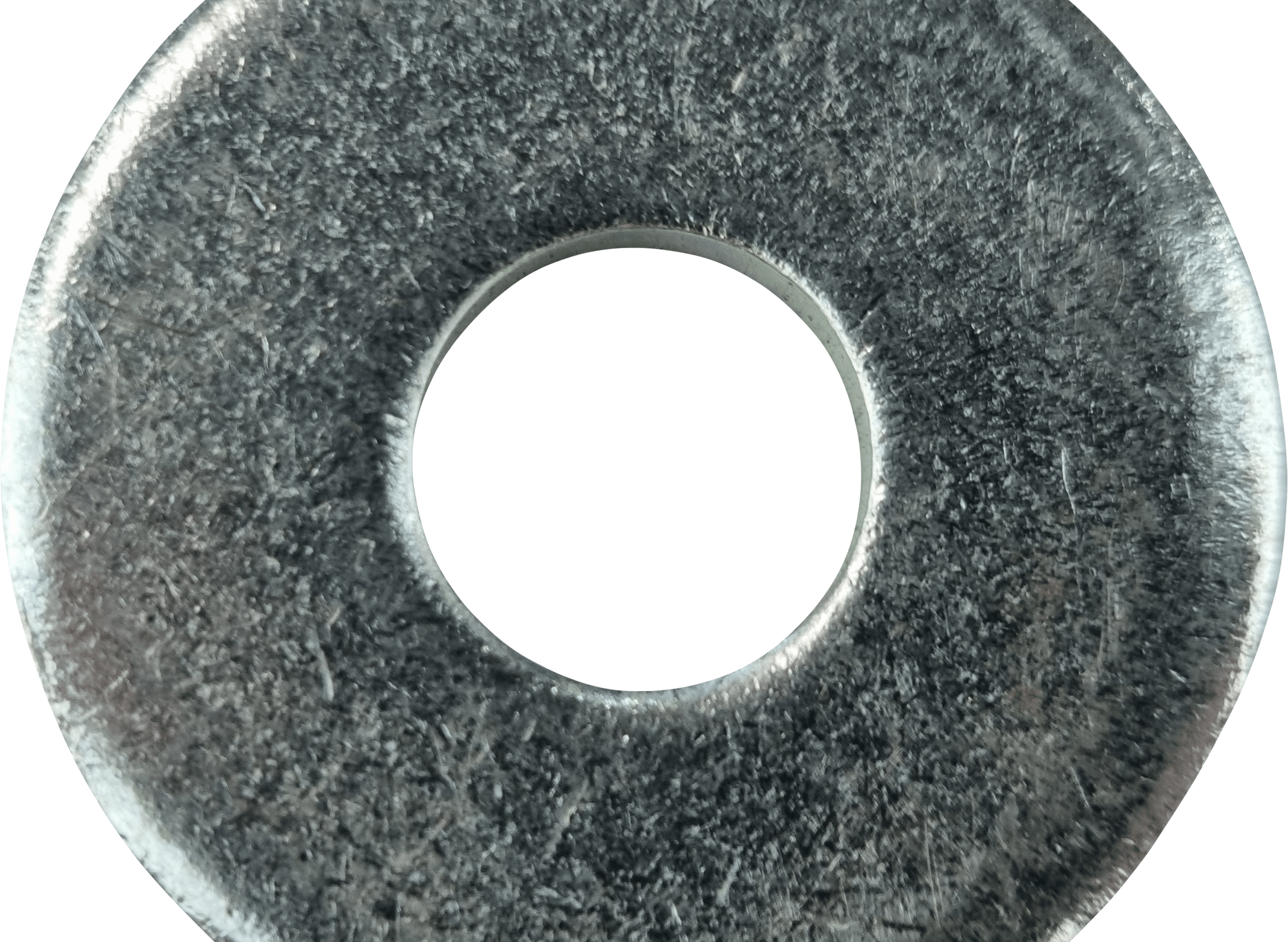

2 | Rotary Mud Scraper Retaining Washer | 921-920 | $2.50 excluding GST | $2.50 excluding GSTAdd to cart |
| View Product | |||||
 |

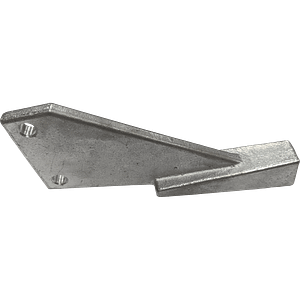

1 | John Deere Disc Knocker | 938-250 | $20.00 excluding GST | $20.00 excluding GSTAdd to cart |
| View Product | |||||
